*DDoS-type attacks recognition with Hybrid Quantum Neural Network (H-QNN):*

## Introduction:

Imagine you’re trying to access your government’s website. You just wanted to print some form or read about law changes, but the site doesn’t load. It’s possible, that the servers are under cyberattack. How can we prevent that scenario? With Machine Learning methods, of course. They are irreplaceable in the cybersecurity field by capturing data nuances, imperceptible by humans. In this short series, we’ll talk about detecting a DDoS-type attack with a new technology: quantum computing.

Quantum computing offers alternative computing ways by using quantum phenomena. Recently, there is a lot of hype around this technology and quite a few Quantum Machine Learning (QML) algorithms appeared. However, finding and training Quantum Machine Learning models that present high level of performance is not an easy task. Finding a QML model that obtains this level of performance on a real dataset is truly outstanding. Let’s take a look at one of these models and its implementation in Pennylane and Tensorflow. We’ll train a Hybrid Quantum Neural Network (H-QNN) on a DDoS-type attacks dataset from paper “*Quantum machine learning for intrusion detection of distributed denial of service attacks: a comparative overview*” [1]. The code in this article is a slightly changed version from the repository attached to the paper. In this article, we’ll train the model on the data prepared in the previous part.

## H-QNN: A bird’s-eye view:

Current quantum devices allow us to train effectively only small quantum models (using as few gates as possible with quantum states, with only a few qubits); this is due to high error rates. Also, models with that size allow to train them on quantum simulators in a reasonable time. In this blog, we’ll train them this way.

There’s a bunch of QML algorithms available, but today we’ll use a Hybrid Quantum Neural Network. In the original paper [1] this H-QNN model performed the best in comparison to two other tested models. H-QNNs are classical Neural Networks (NN) with one or more layers substituted with quantum circuits. This way, we can swap for example small, dense layers at the end of NN with quantum circuits with just a few qubits, and then simulate them fast and locally, or quickly train them on quantum devices (even with thousands of datapoints).

How can we use a quantum circuit as a quantum layer in a Deep Neural Network? We need to:

- Encode the input to the quantum state (e.g. Angle Embedding)
- Use a parametrized set of quantum gates (aka ansatz), to modify the encoded state (e.g. Strongly Entangling Layer) and
- Decode the output from modified quantum state (obtain (quasi)-probabilities of every possible state from measurement and then, for example, calculating expectation values).

`Qiskit`

and `Pennylane`

have good, high-level implementations of quantum layers with gradients evaluation. This way, we can truly incorporate them into `Torch`

or `TensorFlow`

Neural Network models.

Here’s schematic representation of H-QNN. It’s a Deep Neural Network with two nodes per layer, with one hidden layer swapped to quantum one:

## DDoS attacks (reminder):

**Distributed Denial of Service** (**DDoS**) is a type of cyberattack, where many hosts are trying to connect with a victim’s server, until it crashes and is unable to process a legitimate request. It’s coordinated action from one central point, usually performed with malicious software, which infects devices of unaware owners:

Recognizing this type of attack is important in the early stages of connection to the server. This prevents the attackers from taking resources, swamping, and finally shutting down the website or application. We need small, robust models to quickly classify, for example, a user request as benign or potential DDoS, without slowing down the whole process. As we can see, this fits small H-QNN, which can be easily simulated locally, without sending it to a quantum device for prediction. Qiskit, Pennylane and other python software development kits provide efficient quantum simulators for classical computers.

Further reading: What is a Distributed Denial-of-Service Attack?

Let’s begin with importing all needed packages. Here’s our stack:

`# QML`

import pennylane as qml# ML

import tensorflow as tf

from tensorflow.keras.callbacks import ReduceLROnPlateau

# Data processing:

import numpy as np

# Utils

from sklearn.model_selection import train_test_split

from sklearn.metrics import classification_report, recall_score, confusion_matrix, ConfusionMatrixDisplay

from sklearn.metrics import f1_score, accuracy_score, precision_score, make_scorer

# Visuals:

import matplotlib.pyplot as plt

import matplotlib.ticker as mtick

Next, let’s set up global variables:

`# Set random seed:`

GLOBAL_SEED = 419514

np.random.seed(GLOBAL_SEED)

tf.random.set_seed(GLOBAL_SEED)

# Computation data format:

comp_dtype = 'float32'

## Training data preparation:

**Train/test/validation split:**

As a train and test dataset, we took the chosen `10'000`

samples (from the previous part). Then, we split them in ratio `70%`

–`15%`

–`15%`

(training – validation – testing, respectively).

`# set ratio:`

train_val_test_split = [0.7, 0.15, 0.15]

test_val_size = sum(train_val_test_split[1:])

val_size = train_val_test_split[2]/test_val_size# split dataset:

trainX, testX, trainy, testy = train_test_split(x, y, stratify=y, test_size=test_val_size, random_state=GLOBAL_SEED)

testX, valx, testy, valy = train_test_split(testX, testy, stratify=testy, test_size=val_size, random_state=GLOBAL_SEED)

# One-hot encode:

trainy = tf.one_hot(trainy, depth=n_features, dtype=comp_dtype)

testy = tf.one_hot(testy, depth=n_features, dtype=comp_dtype)

valy = tf.one_hot(valy, depth=n_features, dtype=comp_dtype)

## H-QNN and DNN models training:

**Model:**

As mentioned before, we’ll use Hybrid Quantum Neural Network (H-QNN) architecture with fully connected layers as an input and output. The hidden layer is a quantum layer implemented in `PennyLane`

. It’s a parametrized quantum circuit, but then we convert it to a trainable keras layer. To find out more about Tensorflow-Pennylane integration; see this tutorial.

Quantum layer performs Angle Embedding to encode the data to a quantum state. Then we add Strongly Entangling Layers, since it’s commonly used in QML e.g. [2].

For comparison, as a classical model we used Deep Neural Network (DNN) architecture with one hidden layer. The input, hidden and output layers have inputs and outputs of shape `2`

. The 2-qubits quantum layer in H-QNN encode the data into 4 complex numbers and transform them this way. That allows quantum neural networks for higher expressivity (in a sense of approximation broader classes of functions).

Both architectures schematically:

Let’s specify our training parameters:

`n_qubits = 2`

layers = 1

data_dimension = n_featuresbatch_size = 5

n_epochs = 1

**Quantum layer**

Pennylane has a bunch of high-level wrappers for constructing quantum circuits for Quantum Neural Networks. We’ll use them to make `qnode`

(Pennylane quantum circuit object) used later as our Quantum Layer in H-QNN. We need to implement:

**Classical data encoding**: For that, we’ll use`AngleEmbedding`

, which adds rotation gates for each qubit. Default gate is rotation around X-axis and we’ll stick with that. For this part, we need to pass two input parameters, to specify rotation angle for the gate. We’ll scale the input by`π`

to cover all possible qubit states within range`(-1, +1)`

which is the output from the previous layer with sigmoid activation function.**Trainable ansatz**: For that, we’ll use`StronglyEntanglingLayers`

, which apply 3 rotations around`z`

,`y`

and`z`

axis respectively. At the end, we have CNOT gates in both possible ways on 2 qubits. We can apply them as many times as we want, but will stick with only one set.**Data decoding**: For that, we’ll use expectation values in Z basis. This is the most common method, which is just the sum of probabilities of measuring, given qubit in a state`|1>`

with coefficient`-1`

and in a state`|0>`

with coefficient`1`

. We’ll get two numbers between the range`(-1, +1)`

as an output.

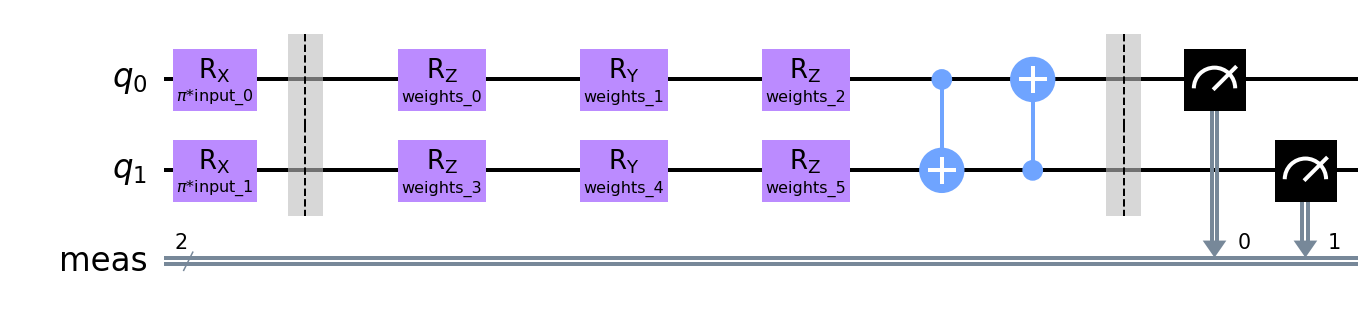

Our quantum layer schematically will looks like this:

Let’s code it:

`dev = qml.device("default.qubit", wires=n_qubits)`@qml.qnode(dev)

def qnode(inputs, weights):

qml.templates.AngleEmbedding(np.pi*inputs, wires=range(n_qubits))

qml.templates.StronglyEntanglingLayers(weights, wires=range(n_qubits))

return [qml.expval(qml.PauliZ(i)) for i in range(n_qubits)]

weight_shapes = {"weights": (layers,n_qubits,3)}

inputs = np.random.rand(n_qubits).astype(comp_dtype)

weights = np.random.rand(layers, n_qubits, 3).astype(comp_dtype)

plt.figure(figsize=(10,10))

qml.draw_mpl(qnode)(inputs, weights)

plt.show()

To complete the model, we’ll use two dense layers as input and output layers. The first one will have `sigmoid`

activation function and the second one `softmax`

, since we have binary classification with two numbers as output from our model. To make our `qnode`

proper Keras layer, we need to put it into `qml.qnn.KerasLayer()`

wrapper:

q_layer = qml.qnn.KerasLayer(qnode, weight_shapes, output_dim=n_qubits, dtype=comp_dtype)

q_layer.build(2)q_model = tf.keras.models.Sequential()

q_model.add(tf.keras.layers.Dense(n_qubits, activation='sigmoid', input_dim=data_dimension))

q_model.add(q_layer)

q_model.add(tf.keras.layers.Dense(data_dimension, activation='softmax'))q_model.summary()

Model: "sequential"

_________________________________________________________________

Layer (type) Output Shape Param #

=================================================================

dense (Dense) (None, 2) 6

_________________________________________________________________

keras_layer (KerasLayer) (None, 2) 6

_________________________________________________________________

dense_1 (Dense) (None, 2) 6

=================================================================

Total params: 18

Trainable params: 18

Non-trainable params: 0

_________________________________________________________________

**H-QNN training:**

Finally, we are ready to run the training:

%%timeopt = tf.keras.optimizers.Adam(learning_rate=0.05)

q_model.compile(loss='categorical_crossentropy', optimizer=opt,metrics=["accuracy"])q_history = q_model.fit(trainX, trainy, validation_data=(testX, testy), epochs=n_epochs, batch_size=batch_size)

1400/1400 [==============================] - 279s 199ms/step - loss: 0.2310 - accuracy: 0.9268 - val_loss: 0.0110 - val_accuracy: 0.9993

Wall time: 4min 38s

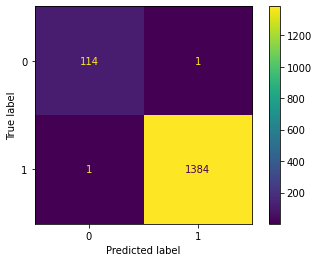

As we can see, our model trained in just one epoch. Let’s evaluate it and see the results in a confusion matrix:

# predicition:

valpredy = q_model.predict(valx)

valpredy_round = np.round(valpredy)# metrics calculation:

q_classification = classification_report(valy[:,1], valpredy_round[:,1])

q_confusion = confusion_matrix(valy[:,1], valpredy_round[:,1])q_accuracy = round(accuracy_score(valy[:,1], valpredy_round[:,1])*100,5)

q_recall = round(recall_score(valy[:,1], valpredy_round[:,1], average='macro')*100,5)

q_precision = round(precision_score(valy[:,1], valpredy_round[:,1], average='weighted')*100,5)

q_f1 = round(f1_score(valy[:,1], valpredy_round[:,1], average='weighted')*100,5)print(f'Accuracy:t {q_accuracy:.2f}%')

Accuracy: 99.87%

print(f'Recall:tt {q_recall:.2f}%')c

print(f'Precision:t {q_precision:.2f}%')

print(f'F1:tt {q_f1:.2f}%')

Recall: 99.53%

Precision: 99.87%

F1: 99.87%disp = ConfusionMatrixDisplay(confusion_matrix=q_confusion)

disp.plot()

plt.show()

**Classical analog:**

This shows that H-QNN can be very effective in a simple classification. For comparison, we’ll train a classical DNN model. As activation, we’ll use relu instead of sigmoid, but the layers shape stays the same:

model = tf.keras.models.Sequential()

model.add(tf.keras.layers.Dense(n_qubits, activation='relu', input_dim=data_dimension))

model.add(tf.keras.layers.Dense(data_dimension, activation='relu'))

model.add(tf.keras.layers.Dense(data_dimension, activation='softmax'))model.summary()

Model: "sequential_3"

_________________________________________________________________

Layer (type) Output Shape Param #

=================================================================

dense_8 (Dense) (None, 2) 6

_________________________________________________________________

dense_9 (Dense) (None, 2) 6

_________________________________________________________________

dense_10 (Dense) (None, 2) 6

=================================================================

Total params: 18

Trainable params: 18

Non-trainable params: 0

_________________________________________________________________

**Training:**

%%timeopt = tf.keras.optimizers.Adam(learning_rate=0.02)

model.compile(loss='categorical_crossentropy', optimizer=opt,metrics=["accuracy"])history = model.fit(trainX, trainy, validation_data=(testX, testy), epochs=n_epochs, batch_size=batch_size)

1400/1400 [==============================] - 2s 1ms/step - loss: 0.0625 - accuracy: 0.9804 - val_loss: 0.0030 - val_accuracy: 0.9993

Wall time: 2.41 s# prediction:

valpredy = model.predict(valx)

valpredy_round = np.round(valpredy)# metrics calculation:

classification = classification_report(valy[:,1], valpredy_round[:,1])

confusion = confusion_matrix(valy[:,1], valpredy_round[:,1])accuracy = round(accuracy_score(valy[:,1], valpredy_round[:,1])*100,5)

recall = round(recall_score(valy[:,1], valpredy_round[:,1], average='macro')*100,5)

precision = round(precision_score(valy[:,1], valpredy_round[:,1], average='weighted')*100,5)

f1 = round(f1_score(valy[:,1], valpredy_round[:,1], average='weighted')*100,5)print(f'Accuracy:t {accuracy:.2f}%')

Accuracy: 99.93%

print(f'Recall:tt {recall:.2f}%')

print(f'Precision:t {precision:.2f}%')

print(f'F1:tt {f1:.2f}%')

Recall: 99.96%

Precision: 99.93%

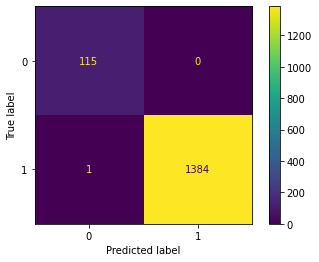

F1: 99.93%# plotting confusion matrix:

disp = ConfusionMatrixDisplay(confusion_matrix=confusion)

disp.plot()

plt.show()

As we can see, the results are similar. Let’s put all the metrics on the same plot:

`c_results = np.asarray([accuracy, recall, precision, f1])`

q_results = np.asarray([q_accuracy, q_recall, q_precision, q_f1])

results_description = ['Accuracy', 'Recall', 'Precision', 'F1']# plot preparation:

fig, ax = plt.subplots(figsize = (10,6))

idx = np.asarray([i for i in range(4)])

width = 0.4

# plotting:

q_bars = ax.bar(idx-width/2, q_results, width=width, label='H-QNN')

c_bars = ax.bar(idx+width/2, c_results, width=width, label='DNN')

# setting ticks:

ax.set_xticks(idx)

ax.set_title('Models results comparison:')

ax.set_xticklabels(results_description, rotation=65)

fmt = '%.2f%%'

yticks = mtick.FormatStrFormatter(fmt)

ax.yaxis.set_major_formatter(yticks)

# add bars labels:

ax.bar_label(c_bars, fmt=fmt)

ax.bar_label(q_bars, fmt=fmt)

# set y-axis limits

ax.set_ylim(90, 100.5)

ax.legend(loc=4)

plt.grid()

plt.show()

## Summary:

In this series, we have trained and evaluated Hybrid Quantum Neural Network (H-QNN). We adapted one of the state-of-the-art approaches, feeding a robust, small quantum architecture with heavily reduced data in terms of features. This allows us to train and evaluate the model using a lot more data points, since quantum models inference is a major bottleneck of these architectures. We obtained a high level of model performance, comparable with classical analog. The code is ready to run on real quantum devices, since the quantum layer is very shallow, and there’s no need to use error correction.

[1] Quantum machine learning for intrusion detection of distributed denial of service attacks: a comparative overview, *E. D. Payares and J. C. Martinez-Santos, 2021*

[2] *QDNN: deep neural networks with quantum layers*, Zhao, Gao 2021 https://doi.org/10.1007/s42484-021-00046-w
